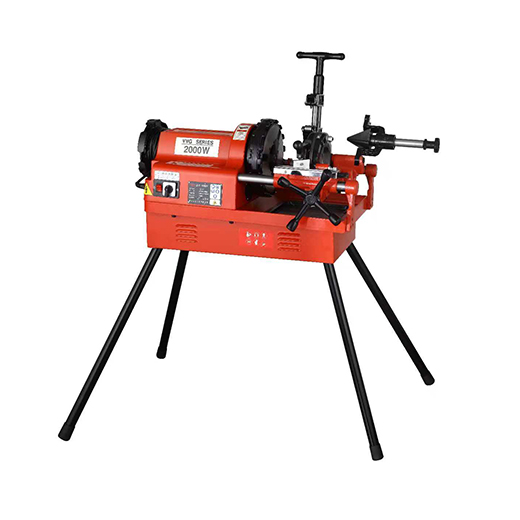

● 2000W permanent magnet motor, efficient 2-speed transmission 45 rpm and 28 rpm no load.
● Reinforced gearbox, 20CrMn Ti, 40Cr material with special heat treatment, provides improved
 machine service life and precision.
● Heavy-duty proven performance on threading and cutting.
● Self-centering Cutter.
● 5 flute cone reamer, high efficiency debur on tube.
● Easily replaceable clamping jaws.
● New epoxy powder coating.
● G.W./N.W.: 65/55Kg
● MEAS: 74x48x53cm

Standard Equipment:
1 Profiling Die Head 1/2"-2", right Dies sets 1/2"-3/4" and 1"-2", 3 legs, 1 cutting oil,
1 cutting oil canister and one set of mounting tools

Code	Voltage	Power	DiesType	Remarks
80Y20	220V 50/60Hz	2000W	BSPT
80Y25	220V 50/60Hz	2000W	NPT
80Y10	110V 50/60Hz	2000W	BSPT
80Y15	110V 50/60Hz	2000W	NPT
