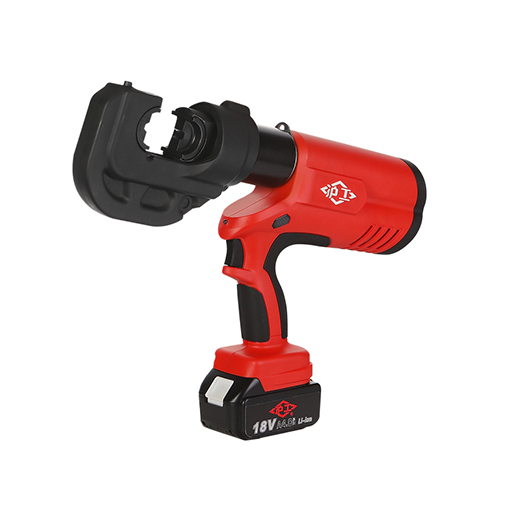

Features
Special hydraulic system with fast feed and power control
Crimping head rotates 350°
Automatic retraction when crimp is completed
Ergonomic designed to help you easily work in the most difficult jobsite conditions
Quality for the highest demands
OLED display shows battery percentage, working cycles,fault code,maintenance note
Weight (with battery). 7.43Kg
Dimensions: 430x330x75mm

Technical Data
Ram force              120KN
Stroke                 42mm
Oil capacity           240m
Max crimping           Cu 400mm*/Al 300mm*
Cycle time             5~8s (CU 150 mm*)
Cycles/charger         Approx.120 cycles (cu 150 mm*)
Voltage/capacity       18v/4.0Ah
Charging time          Approx.80 mins
Charging voltage       AC 100V~240V;50~60Hz
Package                Plastic box

Accessories
Crimping dies                   16,25,35,50,70,95,120,150,185,240,300,400mm2
Battery                         2pcs
Charger                         1pc
Sealing ring of cylinder        lset
Sealing ring of safety valve    1set
