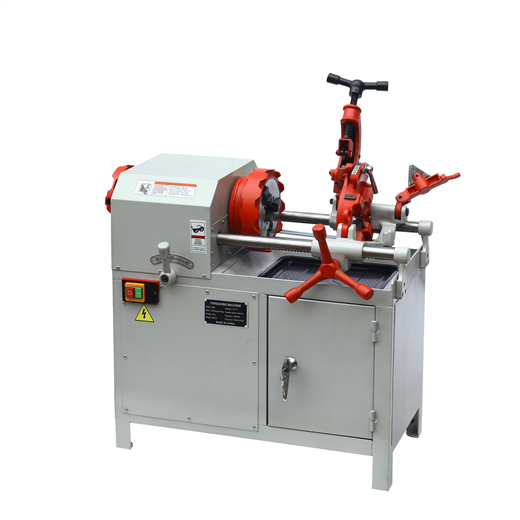

The Bolt Threading Machine is powered by a quiet and powerful induction motor.
1500W, 3-Speed: 128rpm, 68rpm and 35rpm.

● It provides high quality threading, cutting and performance.
● Suited for threading on bolts from M10 to M52 with M-Dies, and 1/2”-2” for pipes with pipe Dies.
● Adjustable Oiling System: Through-the-head with integral oil reservoir. Self-priming, constant-flow, pump.
● Die Heads with Dies from 1/2”-2”, Reamer and Cutter can be choice for pipes. ● G.W./N.W.: 140/120Kg
● MEAS: 73×42×62 cm
● Standard Equipment:
● Supplied with 1 Bolt Die Heads, right M-Dies sets from M10, M12, M(14-16), M(18-22), M(24-27), 1 cutting oil, and one set of mounting tools.
● Selective Accessories
● Bolt threading Dies from M(30-33), M(36-39), M(42-45), M(48-52)
● Pipe threading Dies: 1/2” -3/4”, 1” -2”
● Cutting Assembly: 1 set ● Reamer Assembly: 1 set
● Die Head Assembly for pipes: 1 set

Code	Voltage	Power	Remarks
45A20	220V 50Hz	1500W
45A21	220V 50Hz	1500W	Pipe Dies 1/2”-2”
