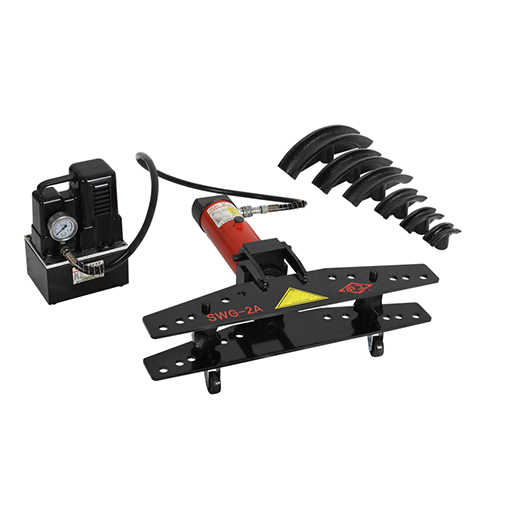

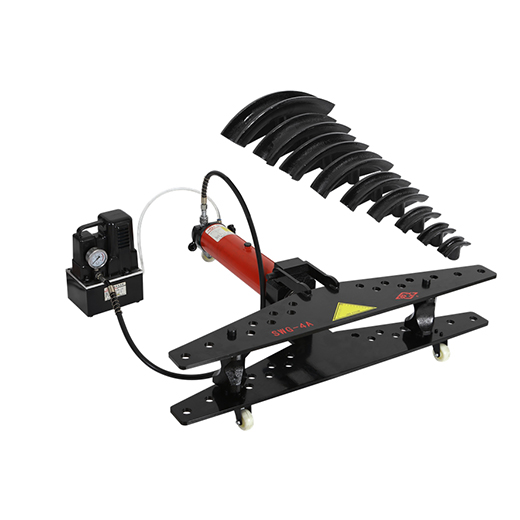

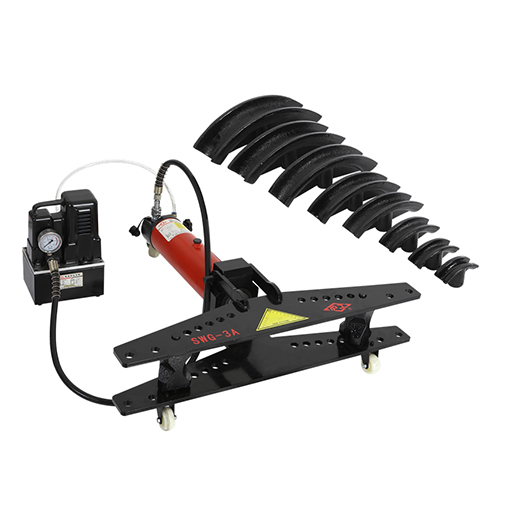

●Suitable for bending metal pipe and tube.
●Available with sliding wing heads in either manual or electrical powered versions featuring a single circuit hydraulic system with spring return which enables the ram to be advanced in controlled stages permitting easy and precise bending of the pipes.
●Supplied with a set of bending formers to ac commodate different pipe sizes.
Model | SWG-2A | SWG-3B | SWG-4D |
---|---|---|---|
Work Pressure | 44MPa | 59MPa | 62MPa |
Work Extant | 250mm | 320mm | 420mm |
Bending Angle | 12.5≤α≤π | - | - |
Bends Radius | 4D | - | - |
Bundle Range | 21.3~60 | 21.3~60 75.5~88.5 | 21.3~60 75.5~108 |
2.75~4.5 | 2.75~4.5 4~6 | 2.75~4.5 4~6 | |
Weight | 24Kg | 30Kg | 50Kg |
Packing Dimension | 75×35×19cm | 94×46×29cm | 121×50×31.5cm |
