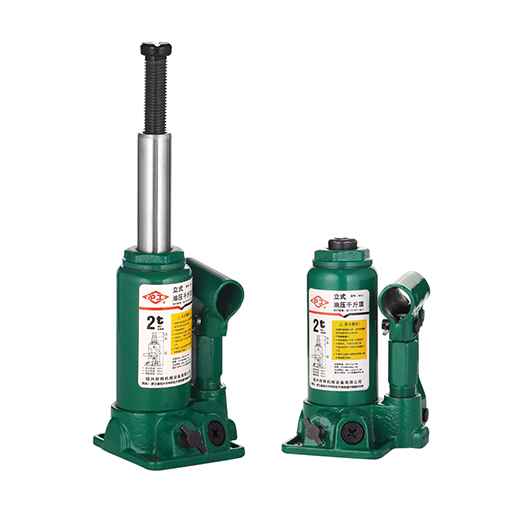

● This product is designed for lifting.
● The jack can be used vertically or angled to 3 degrees from vertical position.
● After lifting, loads must be immediately supported by jack stands.
● Each model is suitable for use in lifting or positioning vehicles, machinery, houses and other building structures.
● Dual-stage, steel hardened rams allow for longer travel.
● Lower retracted heights and higher extended heights.
● Heat treated saddle provides generous lifting area and secure grip.
● A wide-rugged base provides stability and strength.
● Safety bypass valves prevent overloading.
● High quality hydraulic oil and high strength steel.

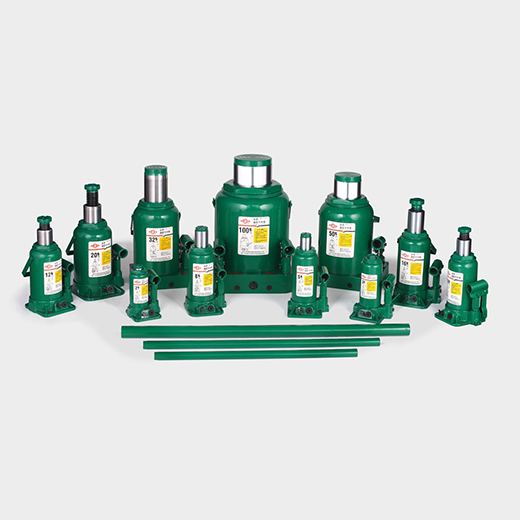

| Code | Capacity (T) | Min. Height(mm) | Lifting Height(mm) | Adjust Height(mm) | QTY(TNS/PCS) | Unit Weight(kg) | N.W./G.W.(kg) | MEAS(cm) |
|---|---|---|---|---|---|---|---|---|
| QYL2 | 2 | 148 | 85 | 60 | 8 | 2.1 | 29.4/29.8 | 52.5×23.5×20.5 |
| QYL3 | 3 | 180 | 110 | 60 | 8 | 2.8 | 28.8/29.8 | 48×25.5×20.5 |
| QYL5 | 5 | 200 | 125 | 60 | 5 | 3.7 | 28.9/29.8 | 63.5×13.5×25 |
| QYL8 | 8 | 200 | 125 | 60 | 4 | 4.3 | 19.2/20.2 | 51×13.5×22.5 |
| QYL10 | 10 | 200 | 125 | 60 | 4 | 4.8 | 21.2/22.2 | 52×14×22.5 |
| QYL12 | 12 | 225 | 140 | 60 | 4 | 6.0 | 24.5/25.5 | 52×14×22.5 |
| QYL16 | 16 | 225 | 140 | 60 | 3 | 7.2 | 22/23 | 47×16×25 |
| QYL20 | 20 | 235 | 145 | 60 | 2 | 9.3 | 18.2/19.2 | 35×18×26 |
| QYL32 | 32 | 285 | 180 | 60 | 1 | 20.4 | 21.8/22.8 | 19×19×30.5 |
| QYL32 | 32 | 285 | 180 | - | 1 | 19.2 | 21.4/22.4 | 19×19×30.5 |
| QYL50 | 50 | 300 | 180 | - | 1 | 28.3 | 29.2/30.2 | 22.3×20×31 |
| QYL100 | 100 | 350 | 180 | - | 1 | 65.4 | 67.3/68.3 | 30×32×40 |
