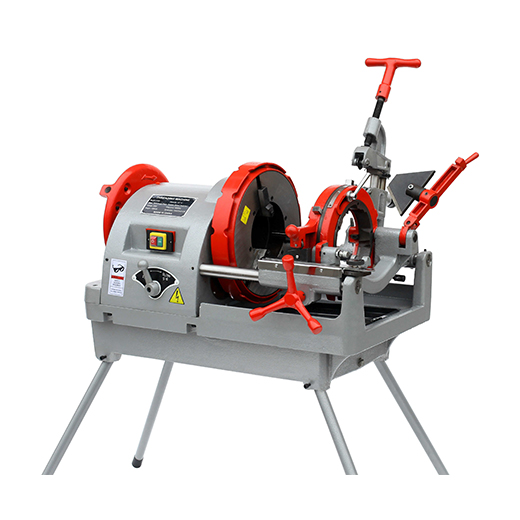

This ultimate in 6” is specifically designed for 150mm pipes.
● Efficient 2-speed transmission 23 rpm and 10 rpm no load. ● Automatic lubrication through the head directly on the Dies. Oil pump for the mechanical system (gear box) with oil flow rate selector according to size.
● Threading size, thread length and microfine adjustment of thread diameter can all be adjusted easily.
● Supplied with 1 Profiling 2.1/2”-4” Die Head, 1 Profiling 5”-6” Die Head, right Dies sets (2.1/2”-4”) and (5”-6”), 4 legs, 1 cutting oil, 1 cutting oil canister and one set of mounting tools.
Code |
Voltage |
Power |
Dies Type |
Remarks |
96A20 |
220V 50/60Hz |
1100W |
BSPT |
|
96A25 |
220V 50/60Hz |
1100W |
NPT |
|
96A10 |
110V 50/60Hz |
1100W |
NPT |
|
96A30 |
380V 50Hz |
1100W |
BSPT |
|
96A35 |
380V 50Hz |
1100W |
NPT |
|
