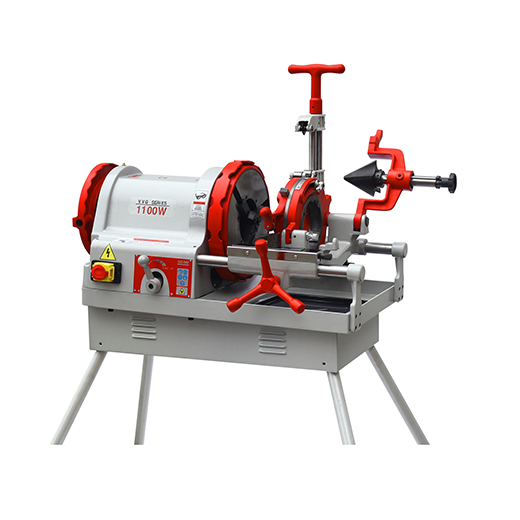

●1300W induction motor, 2-speed 30 rpm and 14 rpm no load.
● Reinforced gearbox, 20CrMn Ti, 40Cr material with special heat treatment,
provides improved machine service life and precision. Heavy-duty proven performance on threading and cutting.
● Self-centering Cutter.
● 5 flute cone reamer, high efficiency debur on tube. ● Easily replaceable clamping jaws.
● New epoxy powder coating. ● G.W./N.W.: 145/125Kg ● MEAS: 96×65×61cm
● Standard Equipment:
● Supplied with 1 Profiling Die Head 1/2”-2” and 1 Profiling 2.1/2”-4” Die Head, right Dies sets (1/2”-3/4”), (1”-2”) and (2.1/2”-4”), 4 legs, 1 cutting oil, 1 cutting oil canister and one set of mounting tools.
Code |
Voltage |
Power |
Dies Type |
Remarks |
94F20 |
220V 50/60Hz |
1300W |
BSPT |
|
94F25 |
220V 50/60Hz |
1300W |
NPT |
|
94F10 |
110V 50/60Hz |
1300W |
BSPT |
|
94F15 |
110V 50/60Hz |
1300W |
NPT |
|
